TEMPO

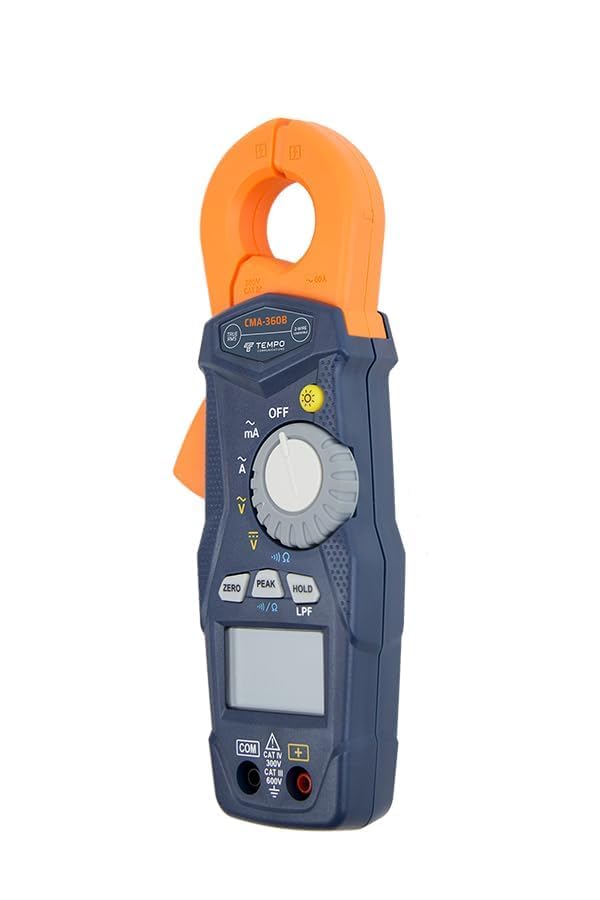

TEMPO CMA-360B True RMS Pro Milliamp Clamp Meter AC/DC Current - Measure Voltage, Resistance, Current - 2-Wire Irrigation

TEMPO CMA-360B True RMS Pro Milliamp Clamp Meter AC/DC Current - Measure Voltage, Resistance, Current - 2-Wire Irrigation

$399.00 USD
$399.00 USD
Sale Sold out
  • PROFESSIONAL-GRADE true-RMS "leakage" amp clamp meter for Electricians, Irrigation Technicians, Industrial Control Engineers, Air Conditioning and HVAC Technicians.
  • TYPICAL USES of 360B clamp meter ac/dc current: mA current measurement for 2-wire irrigation; Voltage and resistance measurements for irrigation and landscape lighting wiring systems; Current measurements for pumps, lighting systems, etc.
  • WIDEBAND RESPONSE to 100 kHz (selectable low-pass filter). Micro-ampere uA resolution and accuracy (ranges 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A ac RMS). 0.001 mA (1 μA) current resolution. Auto Power Off. Peak hold function can be left monitoring until trip occurs on this amp meter clamp ac/dc.
  • USE TO CHECK FOR "NUISANCE TIPPING" (GFCI/RCD) or in irrigation systems to check digital decoders of landscape lighting or feedback signals in industrial control.
  • ADDITIONAL TESTS: Voltage (AC and DC); Resistance (to 600 kΩ); Continuity. SUPPLEMENTARY FUNCTIONS: Voltage AC and DC from 600.0 mV to 600.0V; Resistance to 600.0 to 600.00 k-ohms; Continuity test < 45 ohms.
  • TRUE RMS RESPONSE for AC voltage and current ranges for best accuracy with both smooth and noisy or distorted waveforms on CMA-360B amp meter clamp ac/dc. AC Current Measurement: 60A max range, ideal for all domestic and light industrial use; 6000 mA (6 A) range, ideal for lighter loads such as lighting.
  • FEATURES: True RMS. Backlit display. Auto-ranging. 0.001 mA (1 µA) current resolution. Auto Power Off. Includes case and 2 x AAA batteries.
